Exploring React Native Pointer Events

Why pointer events? It’s a long story that began with the invention of the mouse. In ancient times, before smart phones, the main pointing input device was the mouse and it still is on the desktop and in VR apps. With smartphones, touch became the preferred type of interaction. Now there are pens and desktops and laptops that have touch screens to deal with. These are a lot of different types of events to handle if you want an app to be cross platform.

Pointer events were designed to be hardware-agnostic and target a specific set of coordinates on the screen. They make developing cross-platform apps much easier. Instead of duplicating code to handle the events from a handful of input devices, you can use pointer events to handle touch inputs, mouse inputs, multi-touch, and pen inputs.

The pointer events API in React Native is based on the W3C pointer events API. It may not seem necessary at first glance because mobile is all about touch or is it? What about hover detection, which the Apple pencil now supports? What if you want left-click functionality in your app? Or you want a bluetooth mouse? You may have to write custom event handlers. Plus, the pointer events API uses native code to handle the events, which can improve app performance.

Table of Contents

• Implementing pointer events in Android and iOS
  • Enabling Fabric
  • Activating the pointer events feature flag
• What is the React Native pointerEvents prop?
• Currently available React Native pointer events
• React Native pointer event use cases
  • Drag and drop
  • Detecting pointer type
  • Drawing apps
• Conclusion

Implementing pointer events in Android and iOS

The pointer events API in React Native is currently experimental. It requires Fabric, React Native’s new rendering engine and is only available in version 0.71 and later versions of React Native. You also have to enable the Fabric architecture, which is not super apparent in the React Native development blog post and at least for iOS on a Mac, was the most complicated and longest step. The final step involves enabling feature flags in three places: in the JavaScript code, in iOS, and in Android. Here are the steps.

Enabling Fabric

Fabric is a re-architecture of the React Native framework that aims to improve performance, stability, and reliability of mobile apps built using React Native. It is built on top of a new infrastructure called TurboModules, which provides a more efficient way of accessing native modules in React Native. It also uses a new threading model called the Shadow Tree, which is a separate thread that runs in the background and handles the layout and rendering of components in React Native apps. Fabric also comes with other performance improvements.

I am developing on macOS Monterey, so some of these steps will be slightly different on other operating systems.

Android

In Android, you can enable Fabric in one of two ways:

Set newArchEnabled to true in android/gradle.properties:

# Use this property to enable support to the new architecture.
# This will allow you to use TurboModules and the Fabric render in
# your application. You should enable this flag either if you want
# to write custom TurboModules/Fabric components OR use libraries that
# are providing them.
newArchEnabled=true

Or you can set an environment variable: ORG_GRADLE_PROJECT_newArchEnabled=true.

iOS

The official docs say navigate to the ios directory of your project and run the following command:

bundle install && RCT_NEW_ARCH_ENABLED=1 bundle exec pod install

For me, it was not so easy. I ran into this error when it tried to install ffi, again on mac Monterey.

fatal error: 'ruby/config.h' file not found

And after jumping from Github issues to Stack Overflow questions and back again, installing rbenv worked for me by running the following:

brew install rbenv ruby-build
echo 'eval "$(rbenv init -)' >> ~/.bash_profile
rbenv install 2.6.10
rbenv global 2.6.10

Then the bundle command worked.

Activating the pointer events feature flag

JavaScript

First in the JavaScript entry file, you’ll have to enable the shouldEmitW3CPointerEvents feature flag to use pointer events. And if you want to use pointer events in Pressability, enable the shouldPressibilityUseW3CPointerEventsForHover feature flag. In the defaults React Native app template, this will be the index.js file in the root of your project.

import {AppRegistry} from 'react-native';
import App from './App';
import {name as appName} from './app.json';
// Step 1: Import React Native Feature Flags
import ReactNativeFeatureFlags from 'react-native/Libraries/ReactNative/ReactNativeFeatureFlags';

// Step 2: Enable pointer events in JavaScript
ReactNativeFeatureFlags.shouldEmitW3CPointerEvents = () => true;

// Step 3: Enable pointer event based hover events in Pressibility
ReactNativeFeatureFlags.shouldPressibilityUseW3CPointerEventsForHover = () =>
  true;

AppRegistry.registerComponent(appName, () => App);

Android

You will also have to active the pointer events feature flag in Android, usually in the onCreate method in the root activity which you will find at android/app/src/main/java/com/[app_name]/MainApplication.java.

// ...
// Step 1: Import ReactFeatureFlags
import com.facebook.react.config.ReactFeatureFlags;
// ...
	@Override
  public void onCreate() {
    super.onCreate();
    SoLoader.init(this, /* native exopackage */ false);
    if (!BuildConfig.DEBUG) {
      UpdatesController.initialize(this);
    }
		// Step 2: Activate the feature flag
    ReactFeatureFlags.dispatchPointerEvents = true;
    initializeFlipper(this, getReactNativeHost().getReactInstanceManager());
  }

iOS

And finally, you have to activate the feature flag for iOS in it’s intialization code. In the default React Native template, this will be in ios/[app_name]/AppDelegate.mm in the didFinishLaunchingWithOptions method.

// ...
// Step 1: Import the RCTConstants header from React
#import <React/RCTConstants.h>
// ...
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
	// ...
  // Step 2: Activate the feature flag
  RCTSetDispatchW3CPointerEvents(YES);

  [super application:application didFinishLaunchingWithOptions:launchOptions];

  return YES;
}

What is the React Native pointerEvents prop?

Before we get to the actual pointer events, let’s discuss the pointerEvents prop, because it’s name doesn’t tell you everything it does. It does activate or deactivate pointer events in a React Native View, but it also does the same with touch events. It has four possible values.

• auto: The View and its children can be the target of touch and pointer events. This is the same as not having the prop, but when you use it, you can dynamically activate and deactivate these events by switching it’s value.
• none: Neither the View or its children can be the target of touch and pointer events.
• box-only: The View can be the target of touch and pointer events, but not its children.
• box-none: The View’s children can be the target of touch and pointer events, but not the view itself.

You can learn more about the pointerEvents prop in this LogRocket article.

Currently available React Native pointer events

The React Native pointer events API is a work in progress. Here is a list of the events that have been implemented so far:

• onPointerOver: Fired when the user’s pointer enters the bounds of a View.
• onPointerEnter: Fired when the user’s pointer enters the bounds of a View and moves inside those bounds.
• onPointerDown: Fired when the user presses down on the screen with their pointer.
• onPointerMove: Fired when the user moves their pointer while it is still pressed down.
• onPointerUp: Fired when the user releases the pressure on the screen after having pressed down with their pointer.
• onPointerOut: Fired when the user’s pointer exits the bounds of a View.
• onPointerLeave: Fired when the user’s pointer enters the bounds of a View but then moves outside those bounds without interacting with the View.

The onPointerCancel event is currently being worked on by the React Native team and onClick, onContextMenu, onGotPointerCapture, onLostPointerCancel, and onPointerRawUpdate have yet to be implemented.

What I ran into though is that if you are using TypeScript, the types don’t match this list.

export interface PointerEvents {
  onPointerEnter?: ((event: PointerEvent) => void) | undefined;
  onPointerEnterCapture?: ((event: PointerEvent) => void) | undefined;
  onPointerLeave?: ((event: PointerEvent) => void) | undefined;
  onPointerLeaveCapture?: ((event: PointerEvent) => void) | undefined;
  onPointerMove?: ((event: PointerEvent) => void) | undefined;
  onPointerMoveCapture?: ((event: PointerEvent) => void) | undefined;
  onPointerCancel?: ((event: PointerEvent) => void) | undefined;
  onPointerCancelCapture?: ((event: PointerEvent) => void) | undefined;
  onPointerDown?: ((event: PointerEvent) => void) | undefined;
  onPointerDownCapture?: ((event: PointerEvent) => void) | undefined;
  onPointerUp?: ((event: PointerEvent) => void) | undefined;
  onPointerUpCapture?: ((event: PointerEvent) => void) | undefined;
}

But, for example, onPointerOver exists, but you have to use // @ts-ignore. And all the capture events and the cancel events do not work. So the list is right and the types are wrong, at least currently.

Also, the React Native team plans to investigate other APIs related to pointer events. So the following APIs may be enabled in the future:

• Pointer capture API: setPointerCapture(), releasePointerCapture(), and hasPointerCapture().
• touch-action style property
• click, contextmenu, and auxclick

React Native pointer event use cases

The use cases for pointer events are similar to those for mouse events, touch events, and the events from other pointing devices, except that pointer events can handle them all.

Drag and drop

While trying to come up with an example for drag and drop, I ran into the fact that without the pointer capture events, it is pretty hard to get drag and drop to work. Here is a definition of pointer capture:

Pointer capture allows events for a particular pointer event PointerEvent to be re-targeted to a particular element instead of the normal (or hit test) target at a pointer’s location. This can be used to ensure that an element continues to receive pointer events even if the pointer device’s contact moves off the element (such as by scrolling or panning).

Without pointer capture, I could only drag elements so far before they dropped on their own. Normally, you would call setPointerCapture after the onPointerDown event so you have a handle on the element. So for now, I would suggest using the PanResponder for drag and drop.

Detecting pointer type

For a simple example, let’s determine what type of pointer device we are dealing with and find the x and y offset of the event in the view. Here is the code:

import React, {FC, useState} from 'react';
import {
  StyleSheet,
  View,
  Text,
  NativeSyntheticEvent,
  NativePointerEvent,
} from 'react-native';

const DetectScreen: FC = () => {
  const [type, setType] = useState('Click on Blue');

  const onDown = (event: NativeSyntheticEvent<NativePointerEvent>): void => {
    const {
      nativeEvent: {offsetX, offsetY, pointerType},
    } = event;
    const message = `${pointerType} event at offset x:${offsetX} and y:${offsetY}`;
    setType(message);
  };

  return (
    <View style={styles.container}>
      <View style={styles.top}>
        <Text style={styles.label}>{type}</Text>
      </View>
      <View style={styles.bottom} onPointerDown={onDown} />
    </View>
  );
};

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
  top: {
    height: 200,
    backgroundColor: 'orange',
  },
  bottom: {
    flexGrow: 1,
    backgroundColor: 'blue',
  },
  label: {
    margin: 50,
    textAlign: 'center',
    color: '#fff',
    fontSize: 20,
    fontWeight: 'bold',
  },
});

export default DetectScreen;

In this example, there are two views: one at the top to print a message and one at the bottom to capture pointer events. The bottom view is listening for the onPointerDown event. When any type of pointer is used in the view, it will execute the onDown function, which creates a message out of the pointerType, offsetX, and offsetY values from the event.nativeEvent property and updates the type state value which is printed in the top view.

The properties you expect to see from a pointer event will be in the event.nativeEvent property. Here are some of the other properties you will find there:

{
    "altKey": false,
    "button": 0,
    "buttons": 0,
    "clientX": 47.5,
    "clientY": 415.5,
    "ctrlKey": false,
    "detail": 0,
    "height": 40,
    "isPrimary": true,
    "metaKey": false,
    "offsetX": 47.5,
    "offsetY": 15.5,
    "pageX": 47.5,
    "pageY": 415.5,
    "pointerId": 0,
    "pointerType": "touch",
    "pressure": 0.165,
    "screenX": 47.5,
    "screenY": 415.5,
    "shiftKey": false,
    "tangentialPressure": 0,
    "target": 14,
    "tiltX": 0,
    "tiltY": 0,
    "twist": 0,
    "width": 40,
    "x": 47.5,
    "y": 415.5
  }

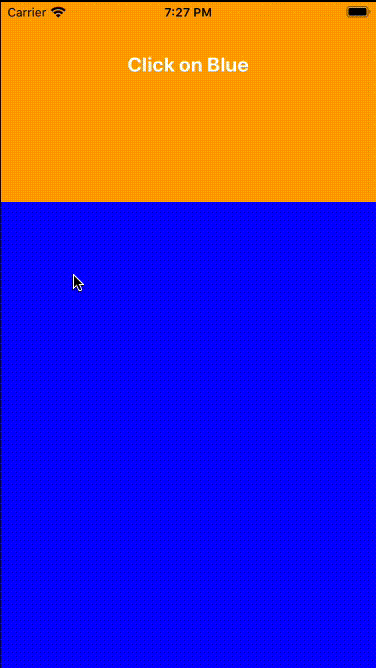

And here it is in action:

Drawing apps

Currently there is enough pointer APIs active in React Native to create a drawing app using them. To create this very basic drawing example, I used the React Native SVG package. We will be using pointer events to create a path in an SVG image. A path defines the series of connected lines, curves, and other shapes in the SVG and is stored as d in the SVG. We will generate it using the onPointerMove event.

Here is the code:

import React, {FC, useState} from 'react';
import {
  StyleSheet,
  View,
  Text,
  NativeSyntheticEvent,
  NativePointerEvent,
  Dimensions,
} from 'react-native';
import {Path, Svg} from 'react-native-svg';

const {height, width} = Dimensions.get('window');

const DrawScreen: FC = () => {
  const [path, setPath] = useState<string[]>([]);

  const onMove = (event: NativeSyntheticEvent<NativePointerEvent>): void => {
    const {
      nativeEvent: {offsetX, offsetY},
    } = event;
    const newPath = [...path];

    // Create a new point
    const newPoint = `${newPath.length === 0 ? 'M' : ''}${offsetX.toFixed(
      0,
    )},${offsetY.toFixed(0)} `;

    // Add new point to existing points
    newPath.push(newPoint);
    setPath(newPath);
  };

  return (
    <View style={styles.container}>
      <Text style={styles.label}>Draw Something</Text>
      <View style={styles.wrapper} onPointerMove={onMove}>
        <Svg height={height * 0.8} width={width}>
          <Path
            d={path.join('')}
            stroke={'blue'}
            fill={'transparent'}
            strokeWidth={2}
            strokeLinejoin={'round'}
            strokeLinecap={'round'}
          />
        </Svg>
      </View>
    </View>
  );
};

const styles = StyleSheet.create({
  container: {
    flex: 1,
    justifyContent: 'center',
    alignItems: 'center',
  },
  wrapper: {
    borderColor: 'blue',
    borderWidth: 2,
    height: height * 0.8,
    width,
  },
  label: {
    color: 'blue',
    fontSize: 20,
    fontWeight: 'bold',
  },
});

export default DrawScreen;

When we press down on the screen with the mouse in the simulator, on a device with a finger or pen, or use some other pointing device and then move it across the screen, it triggers the onPointerMove event which executes the onMove function.

This function gets the x and y offsets of the pointer location and adds it as another point in the path array. This array is then joined into a single string to the path data for the d attribute of the SVG.

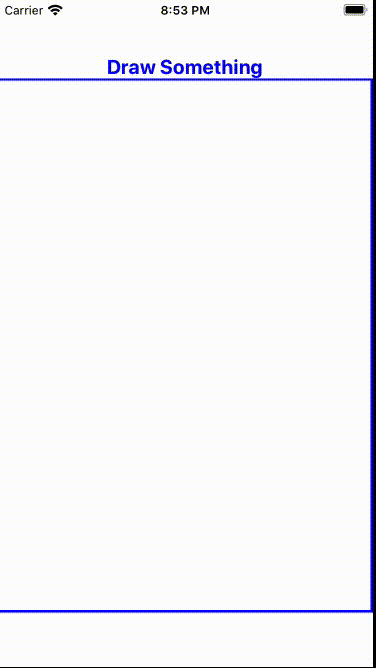

And here is this example in action:

Conclusion

React Native’s Pointer Events API provides a powerful way to handle input events from different devices on both Android and iOS platforms. It allows developers to write cross-platform applications that handle touch inputs, mouse inputs, multi-touch, and pen inputs.

While the API is currently experimental and requires enabling Fabric, it will eventually provide a much simpler way to handle pointer events in comparison to writing custom event handlers. The Pointer Events API also uses native code to handle events, which can improve app performance.

However, enabling Fabric can be a complicated process, and there are some extra steps that need to be taken to activate the feature flags. The API is still a work in progress, and we can expect to see more improvements and features added in the future. You can find the full source code used in this here at this Github repo, including my fail with drag and drop.
